HADES
Hybrid Autonomous Deep Exploration System
HADES is built for missions where reliable intelligence is required without relying on radio links — from industrial facilities to underground structures.
TRL 4

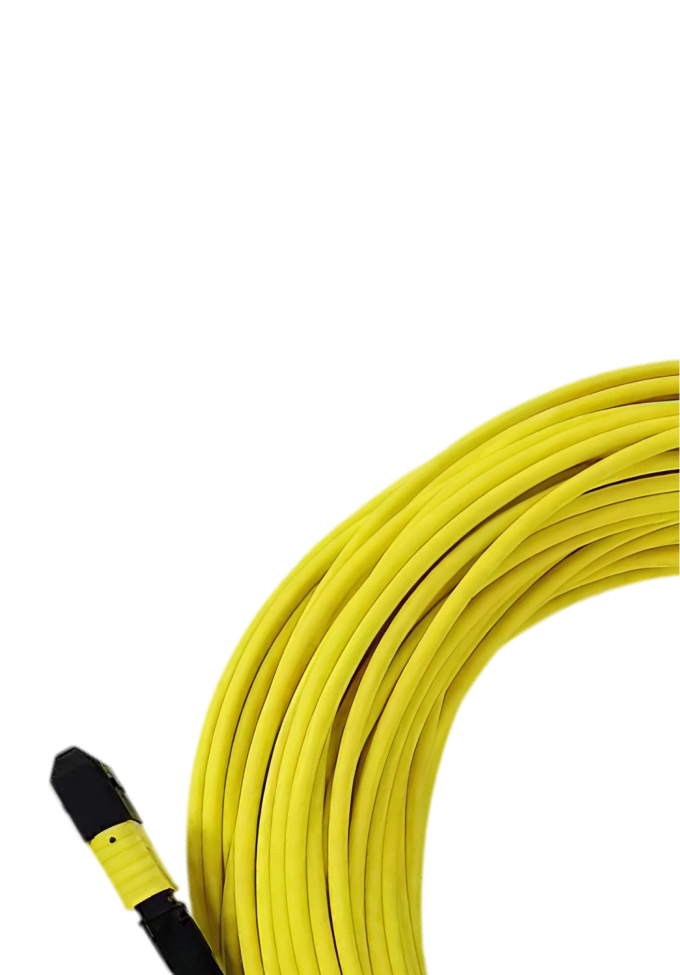

Optic fiber tether cable
Play Video
Optic fiber tether cable
250+ km/h
Play Video
Optic fiber tether cable
Play Video
HADES

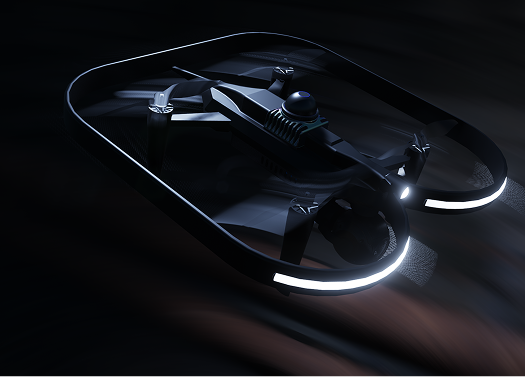

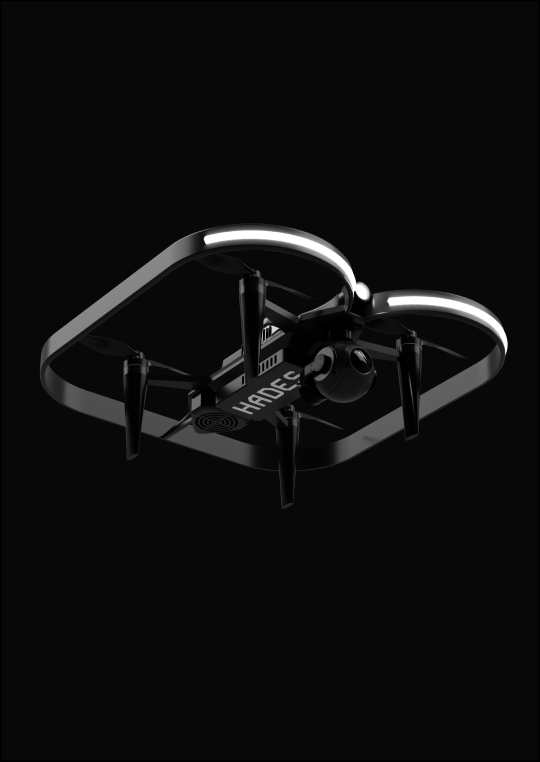

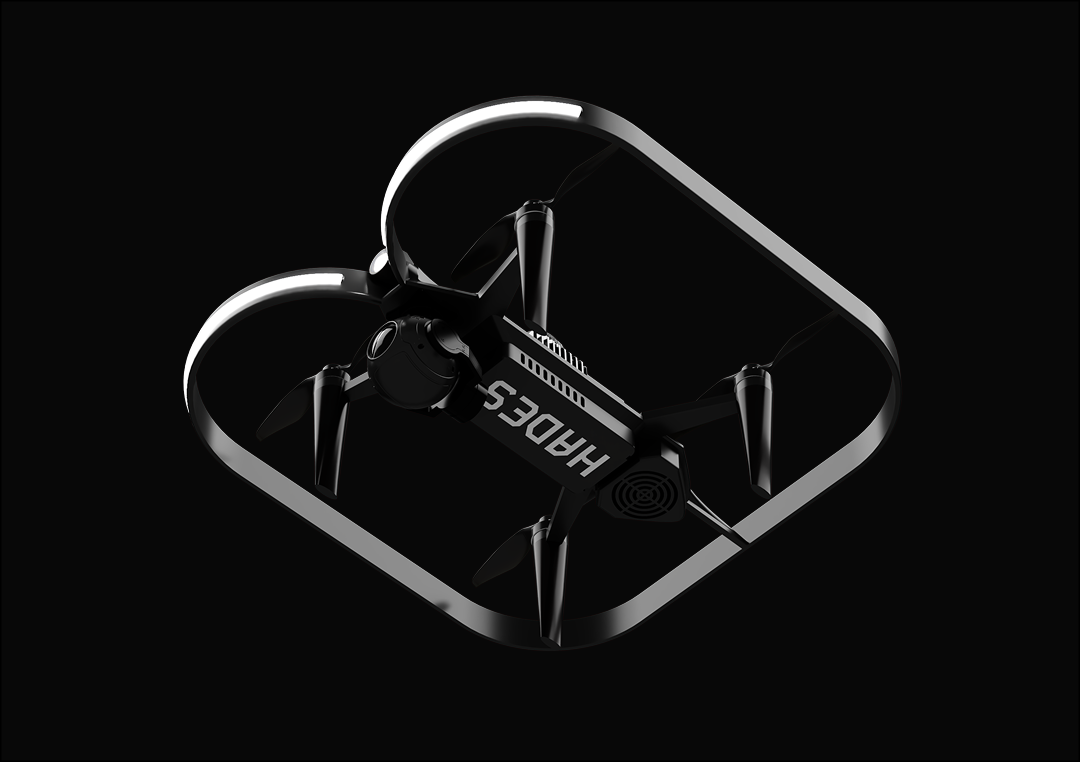

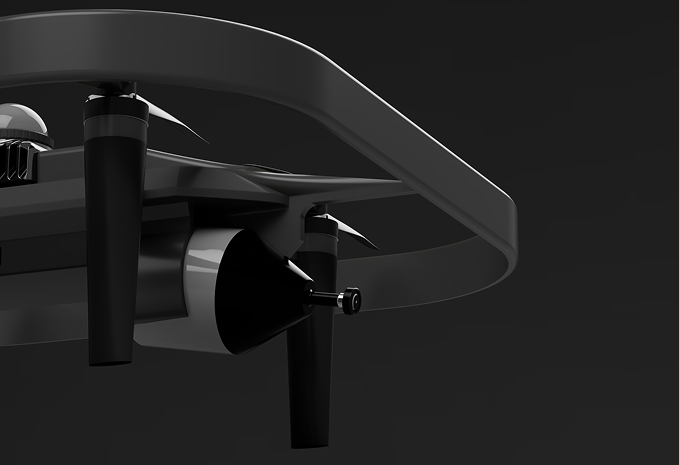

Hybrid Autonomous Deep Exploration System is an autonomous reconnaissance drone designed for exploration and inspection in confined or hazardous environments. HADES combines on-board battery autonomy with a fiber-optic tether for direct, lossless video transmission and storage.
HADES
Hybrid Autonomous Deep Exploration System is an autonomous reconnaissance drone designed for exploration and inspection in confined or hazardous environments. HADES combines on-board battery autonomy with a fiber-optic tether for direct, lossless video transmission and storage.
Missions

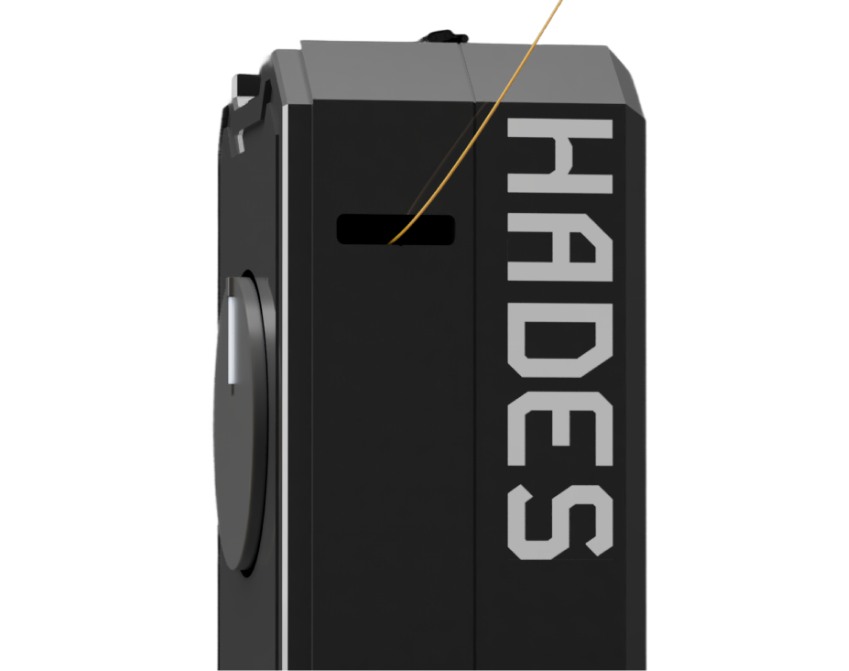

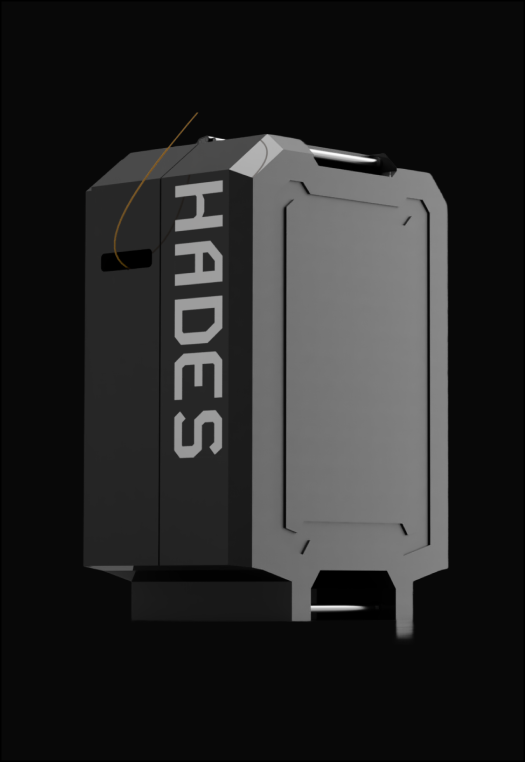

Compact, portable, and designed for field deployment. Equipped with an internal battery powering the communication repeater and video converter, plus a built-in fiber-spool mechanism for quick setup and data safety.
Missions
Compact, portable, and designed for field deployment. Equipped with an internal battery powering the communication repeater and video converter, plus a built-in fiber-spool mechanism for quick setup and data safety.
Specification
Data output interface
Fiber-optic (Full HD video + telemetry stream + control). Local storage via fiber-linked converter - FHD capture.
Dimensions W/L/H
500*500*190 mm
Flight control sensors
IMU, GPS, Real-time stabilization; GPS available when tether disconnected
Flight Time
up to 40 min*
Motor type
4 × Brushless motors, high-efficiency propellers
Materials
Carbon fiber, Aluminum, PETG-CF
Speed
Max ascent - 20 km/h Max horizontal speeds - 40 km/h
Operating temp.
0ºC to 50 ºC* ; 32 °F to 122 °F Valid for batteries pre-condition between 10°C and 40°C
Mass
1 500 / 2 600 g including LiDAR payload (optional)
Propellers
4 propellers, 5 inches
Battery life time
30 flights
Battery shelf time
250 days when stored at ~20°C and at 50% SOC
Battery Type
LiPo 6S HV 22.8 V / 4000 mAh
Charging Time
≈ 60-80 min
Power Input
100–240 V AC (50/60 Hz)

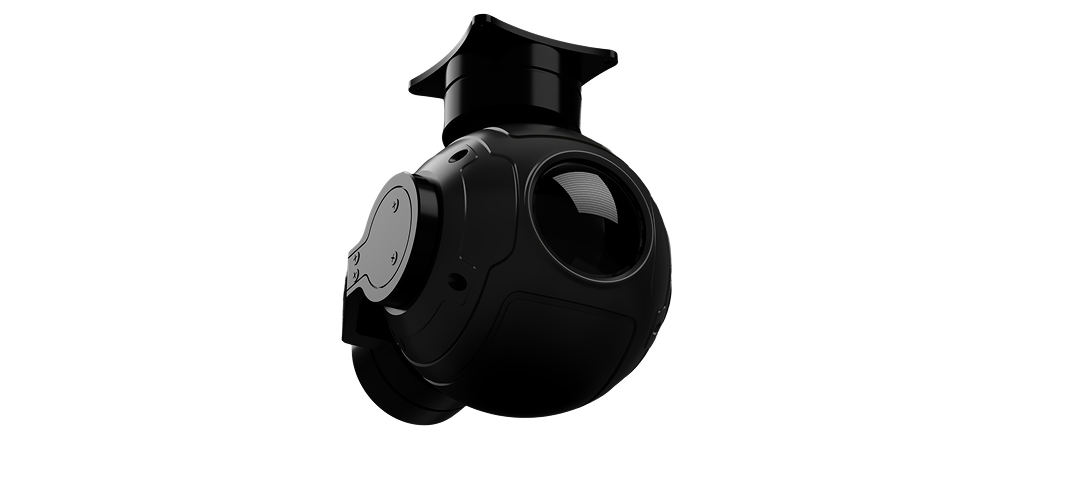

Camera
ZR10 2K 4MP QHD 30X Hybrid 10X Optical Zoom Gimbal Camera
File Storage
MicroSD card (onboard the aircraft) Max capacity: 128 GB Recommended model: Sandisk Extreme micro SDXC UHS-I V30
Ground sample distance
4.5 ~ 148.4 mm (±5%)
Lens
F1.3 ~ 2.8 (±5%), 30X Optical Zoom (180X Hybrid Zoom)
Photo Formats
4000 x 3000, up to 40 pictures during flight / JPG
Sensors
1/2.7 Inch Sony CMOS 8 MP Effective Resolution
Video
FHD: 1920 x 1080 at 30 fps, MOV
Streaming Resolution
QHD: 1920 x 1080 at 30 fps
Controls
From remote controller, adaptive light beam controlled by camera pitch

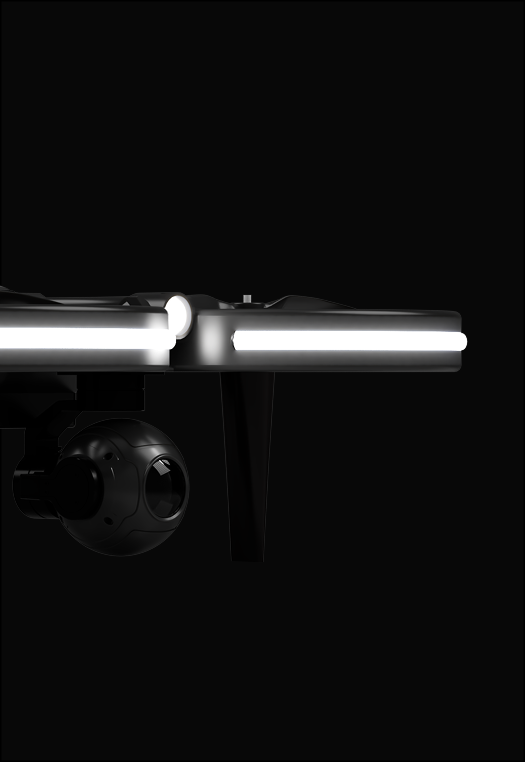

Light Output
15 W (6000 lm) LED strips light; Head beam led module 20 W
Navigation lights
One RGB navigation light on the rear of the drone
Frequency band Tx
2.4GHz ISM band (2400MHz - 2483.5MHz)
